Equipment Capabilities

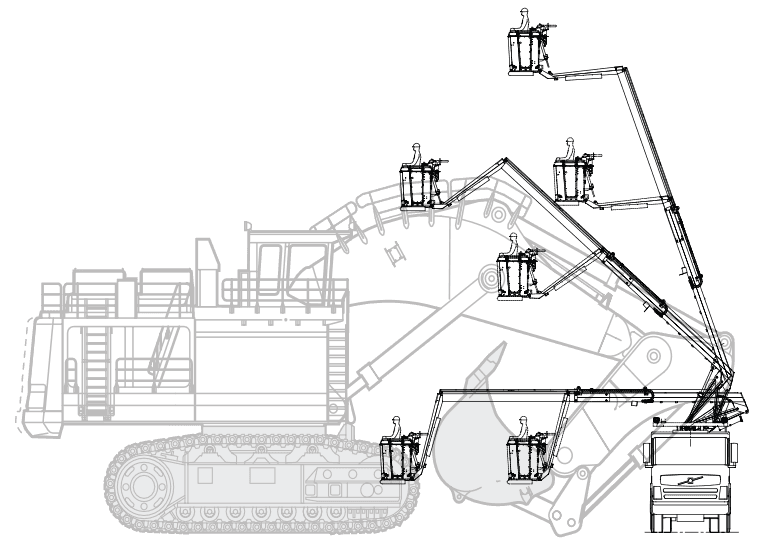

Fully Hydraulic High Reach EWP with proportionally controlled work platform

• Maximum up to 15 metres working height
• Maximum horizontal outreach of 10 metres
• Maximum rated load in basket 205kg
• One-man operation with a ground spotter
• Open basket to accommodate 1-2 persons during operation
• Touch sensors on basket to enable safe manoeuvring
• LED working lights on boom and basket

Heating and Fluid System

• Heat efficient 230kW diesel heating system
• Delivers 60 degrees hot water promptly after start
• Variable hot water temperatures - up to 95 degrees
• High/low pressure and high/low volume washer system
• Automatic detergent mix system; 5-20%
• Three spray guns in the basket and 2 spray guns at the rear platform of the vehicle:
  • 2 handheld high pressure guns able to spray 22l/min at max 250 bar (basket/platform)
  • 2 handheld low pressure guns able to spray 120l/min at max 20 bar (basket/platform)
  • Swing arm mounted low pressure gun able to spray 230l/min at max 20 bar (basket)

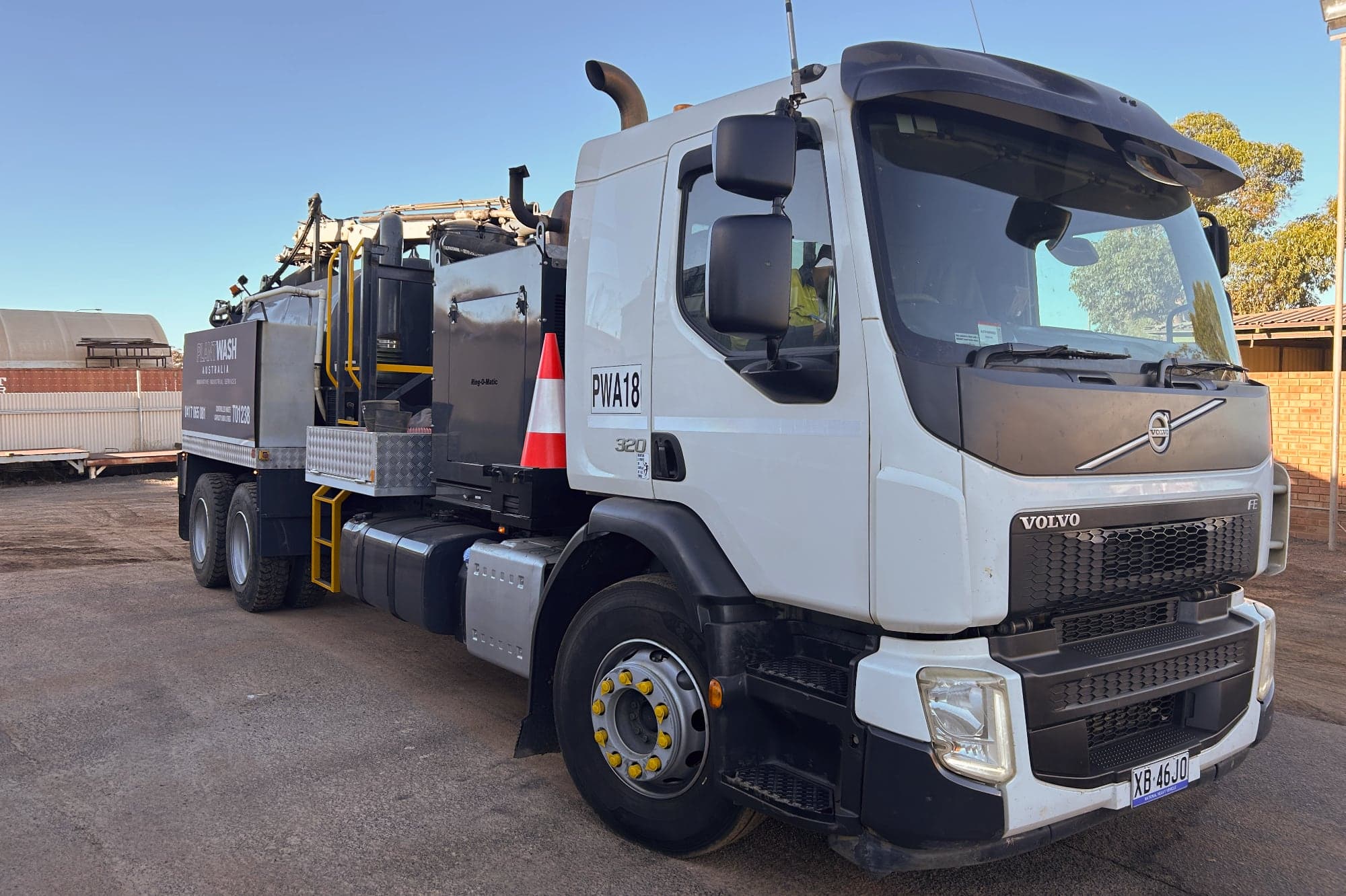

Chassis

• Volvo FE300 chassis
• Stainless steel tanks with 7000 litre capacity
• Insulated tanks to maintain heated water for 24 hours
• Unique suspension stabilising system, no outriggers required
• Rear platform for long distance transportation of basket

Control System

• PLC based control system including module for trouble shooting and self diagnostics

Information Displays

• Tank level indications
• Temperatures in tank 1 and batch tank

Safety Equipped

• Sensors and Camera
• Standards and Safety Certification
